The Beijing 2022 Winter Olympic Games officially kicked off on February 4. Being one of the most iconic competitions, bobsled is a racing of gravity-powered sleigh down a narrow, downhill track covered in ice by steering through twists, turns, and straight-aways. Known as the “Formular One on Ice”, the maximum racing speed can reach as fast as 160km/h, creating a few G-Forces in rapid acceleration or deceleration. In such high-speed situation, the safety of athletes is the top priority; As an important part of the protection accessories, the full-face bobsled helmets will require the safety, functionality, and of course comfort for the athletes under the challenging condition of speed and temperature.

Led by Assoc. Prof. Li Nan of Dongguan University of Technology, bobsled helmet R&D team has been looking into additive manufacturing technology in the very beginning with Farsoon Technologies and Wanhua Chemical Group.

“Mechanical strength, weight-reduction and customizable-fit – these are the key factors to achieve the best performance of the helmet,” says Li, “Compared to traditional manufacturing, 3D printing offers us more possibilities for design optimization and customization. We are proud to team up with the innovation leaders in the fields of 3D printing, material science and design prototyping, to create this brand-new bobsled helmet together.”

Figure 1: 3D printed bobsled helmet lining produced by Farsoon’s Flight^® Technology (left) & the helmet used in racing (right). Image Courtesy: Farsoon Technologies

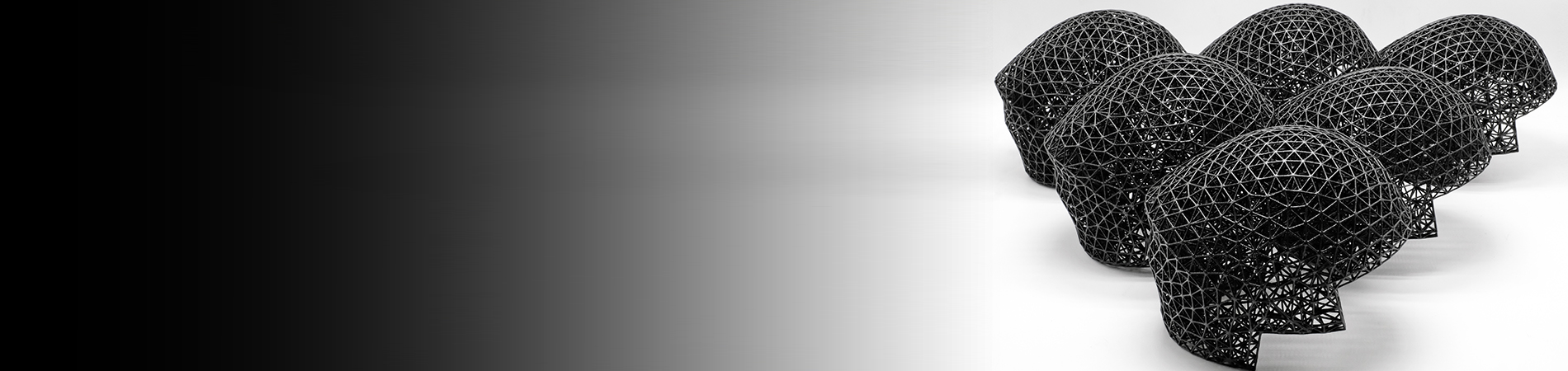

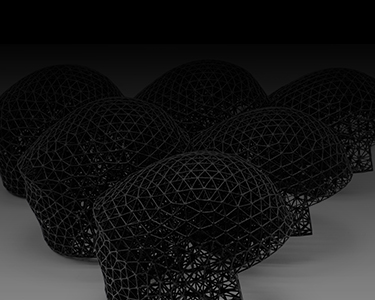

Figure 2: An array of 3D printed bobsled helmet lining produced by Farsoon’s Flight® Technology. Image Courtesy: Farsoon Technologies

Production efficiency & optimal performance achieved by open partnerships

The bobsled helmet lining is fabricated with Wanhua Chemical‘s specialized TPU material developed for the superb performance under the extreme temperature, and produced by Farsoon’s dual-laser Flight^® Technology.

“In order to meet the requirement of excellent bearing capacity, impact resistance and shock absorption performance for the helmet lining, we specifically developed WF-PU95AB TPU material for Farsoon’s fiber laser sintering process.” says Dr. Yang Jie, Strategy R&D Manager of Wanhua Chemical. “We solved the challenging technical issues such as laser absorption, powder re-coating for TPU material processing; and achieved good physical properties including elasticity and flexibility even at a temperature as low as -35°C.”

Farsoon’s latest dual fiber laser Flight^® Technology offers industrial-scale manufacturing turn-over with the TPU material; takes advantage of two powerful 300-watt Fiber lasers and two dynamic optical systems, creating two ultra-fine laser spots with fast scanning speed of up to 20m/s (66ft/s) for each. With the Flight 403P’s expanded cylinder size 400 × 400 × 450mm, two bobsled helmet linings can be produced in one build, of only 7.5 hours.

Also, thanks to the open parameter strategy offered with all Farsoon machines, Li worked closely with Wanhua and Farsoon application team to conduct tests of various parameter combinations integrating the laser power, scan spacing and layer thickness; to choose the best suited processing parameters balancing mechanical performance and weight requirement of the helmet lining lattice structure.

Figure 3: (GIF image) Optimizing the helmet lining processing parameter thanks to Farsoon’s open platform. Image Courtesy: Farsoon Technologies

Figure 4: (Video) The build process of bobsled helmet lining by Farsoon’s Flight® Technology. Video Courtesy: Farsoon Technologies

Customized lattice design for reduced weight & better protection

Compared with the standard foam helmets available in limited sizes and fittings, the new generation of the helmet uses 3D scanning to collect the data for customizing the helmet lining lattice design to best fit each athlete’s head; it offers great gravity self-adaptation, and improve wearing comfort and safety during the competition.

The lattice structure developed by the bobsled helmet R&D team is composed of multiple layers and buffer zones with different hardness levels. Areas with higher collision frequencies are equipped with structural distribution of different densities, which can accurately absorb the damage caused by head collision. These impact zones were designed to resist the various impact forces of the helmet in the event of a collision, providing athletes with unprecedented protection performance.

The 3D printed lattice lining, together with the carbon fiber shell, weighs only 1.1 kg – achieves 500 grams weight reduction compared to the traditional foam helmet.

“Thanks to Farsoon’s high-speed dual-laser Flight^® Technology, we are able to achieve customized design and accelerated manufacturing process,” says Li, “we are also impressed with the performance of the new generation of customized helmets, as the impact strength of the helmet lining is increased over 40% compared with the international standard. It is also inspiring for us, to use 3D printed lattice structure to produce other protective sports pieces, which bringing new opportunities for the upgrading of helmets, armors and other protective equipment.”

Figure 5: The design of helmet lining is verified by Dongguan Keheng Prototype Co., Ltd. Image Courtesy: Farsoon Technologies

The new bobsled helmet has already passed GB and ECE certifications, and it meets the requirement of the FIS (Federation Internationale De Ski). As an innovator of the industrial 3D printing, Farsoon will continue to help pushing the limits in technology and help the athletes exploring their potential in the Olympic spirit.
