Polyamide 12 Nylon

Most tested material for AM
Performance + Durability + Versatile
Cost-efficient

REQUEST A QUOTE

Polyamide 12 for your production

Polyamide 12 is a high-performance, easy-to-process material for plastic laser powderbed fusion technology. Parts made from PA12 features good mechanical properties, balanced performance, advanced size accuracy and chemical stability. Thanks to the high performance and cost-efficiency of PA12, the PA12 material is well suited for a wide range of industry applications from functional prototyping, series production of end-use parts to mass customization.

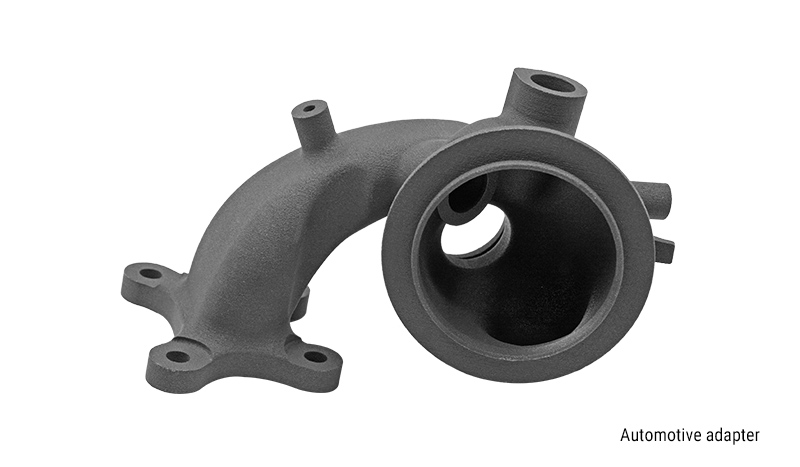

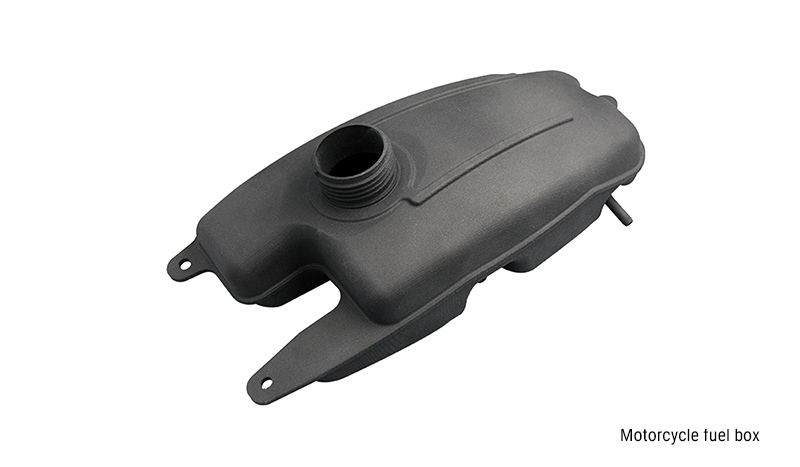

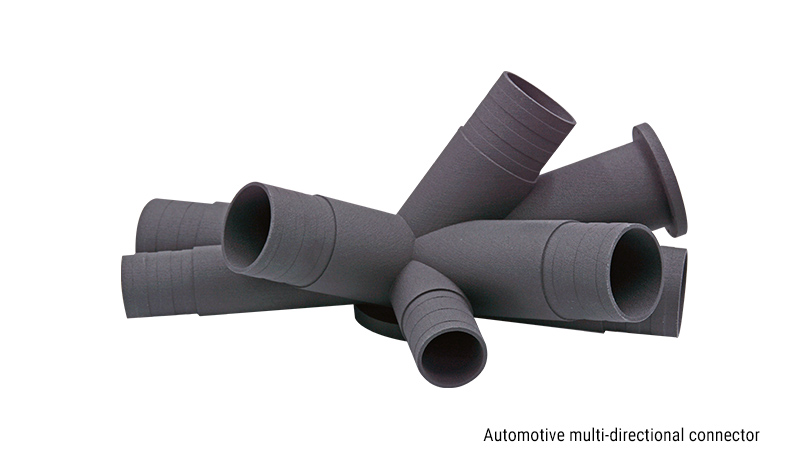

FS3150CF

Farsoon’s FS3150CF is a PA12-based material reinforced with Carbon Fiber. It showcasing good strength, rigidity combined with light-weight feature. It is ideal for application requiring high resistance to thermal deformation and anti-static electricity in aerospace and automotive industry.

General Properties

Part Density1.07 g/cm³
ColorBlack

Key Mechanical Properties

Tensile Strength56 MPa
Tensile Modulus3350 MPa
Elongation at Break6.9%
DOWNLOAD TECHNICAL DATA

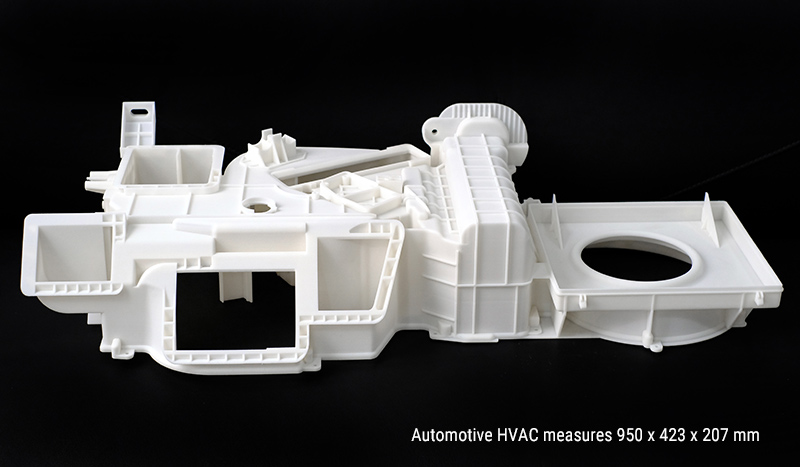

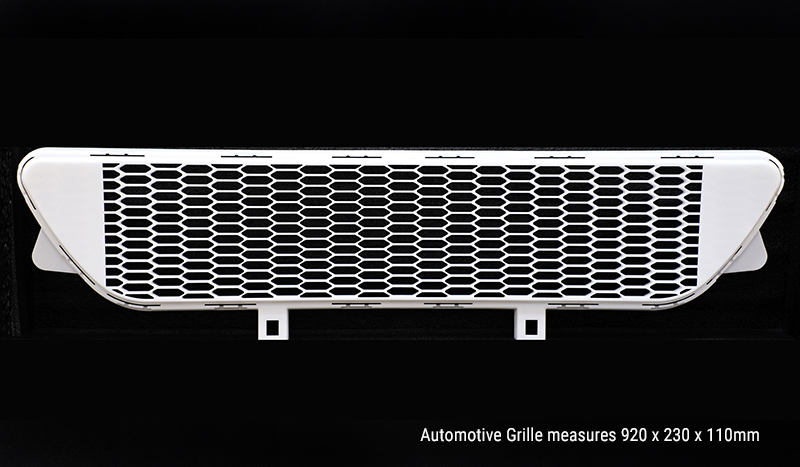

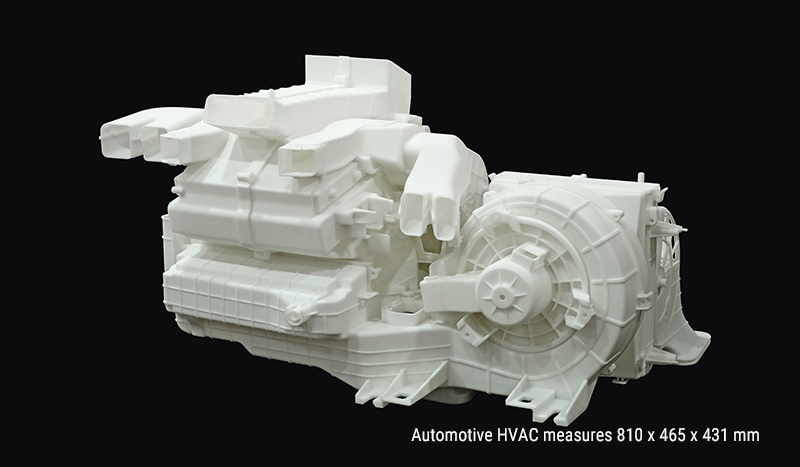

FS3300PA

Farsoon’s flagship polyamide material FS3300PA is a PA12 based material features excellent mechanical properties, bio-compatibility, balanced performance that can suit a wide range of industrial applications from rapid prototyping to functional parts production.

General Properties

Part Density 0.95 g/cm³
ColorWhite

Thermal Properties

Melting Point (10°C/min)183 °C
Heat Deflection Temp (HDT) @1.8 MPa83.5 °C
Heat Deflection Temp (HDT) @0.45 MPa146.2 °C

Key Mechanical Properties

Tensile Strength46 MPa
Tensile Modulus1602 MPa
Elongation at Break36 %
DOWNLOAD TECHNICAL DATA

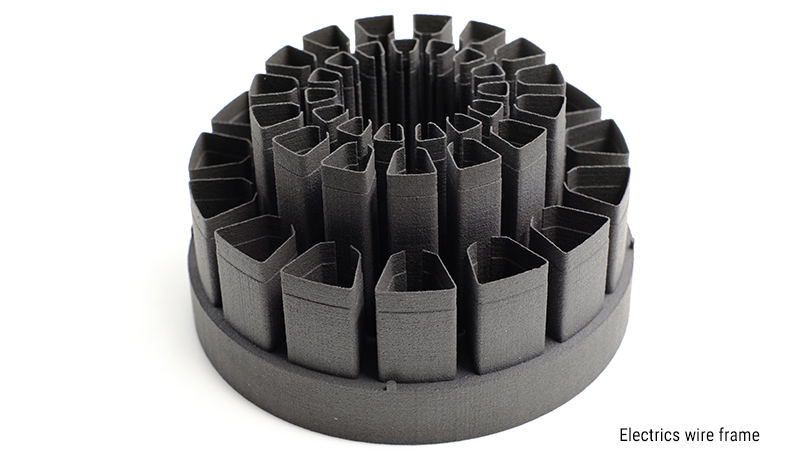

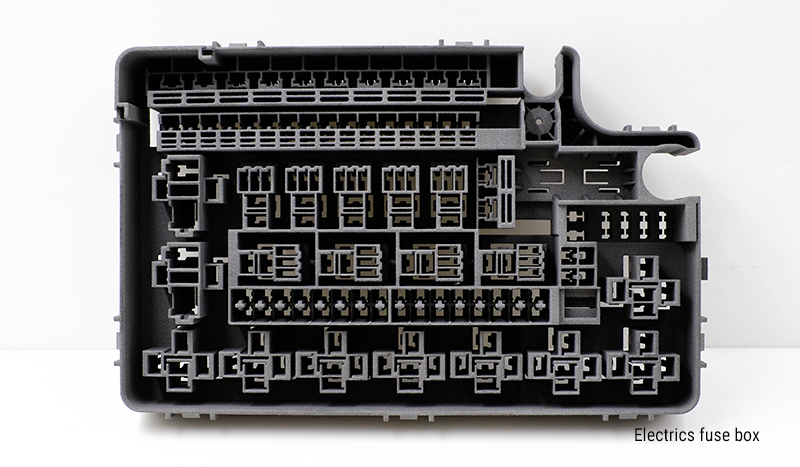

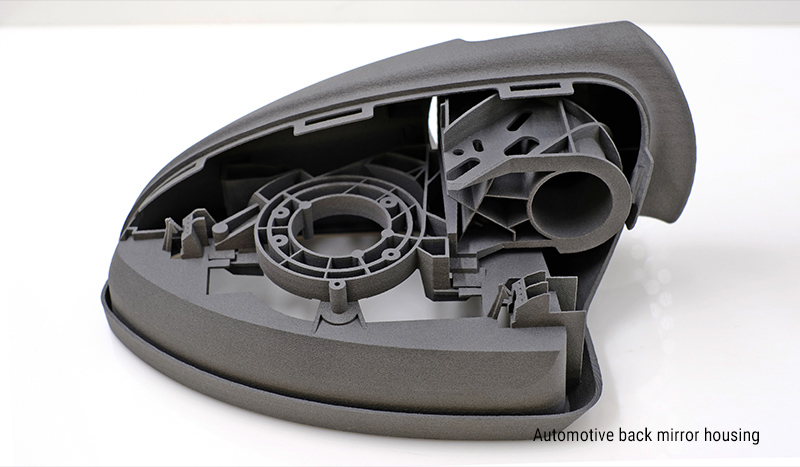

FS3300PA-F

Developed for Flight® Technology, the PA12 based FS3300PA-F is optimized for Fiber Laser processing. It is easy to process and versatile in its applications; it produces parts offering a good balance of mechanical / thermal / feature properties that can suit a broad array of industrial applications.

General Properties

Part Density1.02 g/cm³
ColorBlack

Thermal Properties

Melting Point (10°C/min)184 °C
Heat Deflection Temp (HDT) @ 1.8 MPa53 °C
Heat Deflection Temp (HDT) @ 0.45 MPa147 °C

Key Mechanical Properties

Tensile Strength48.2 MPa
Tensile Modulus1820 MPa
Elongation at Break22%
DOWNLOAD TECHNICAL DATA

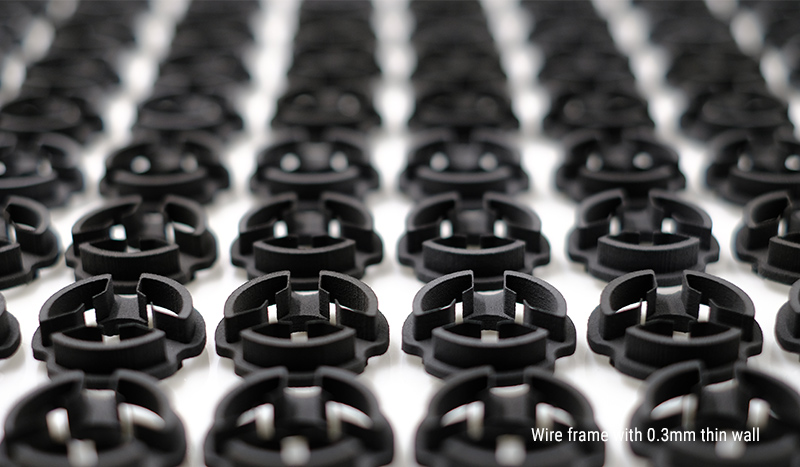

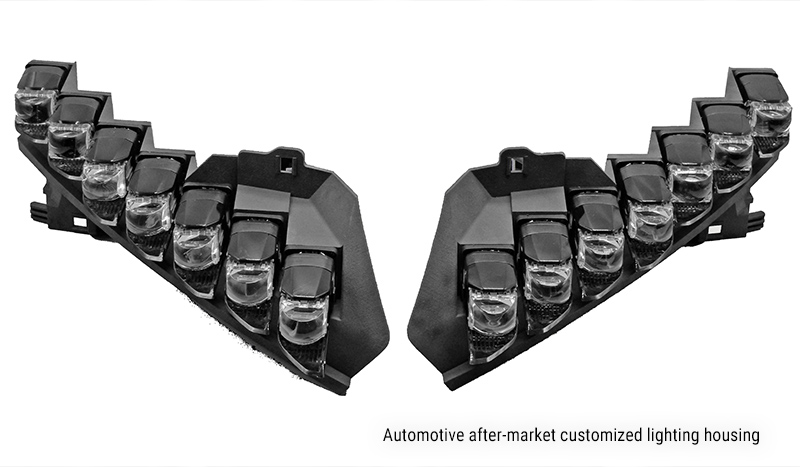

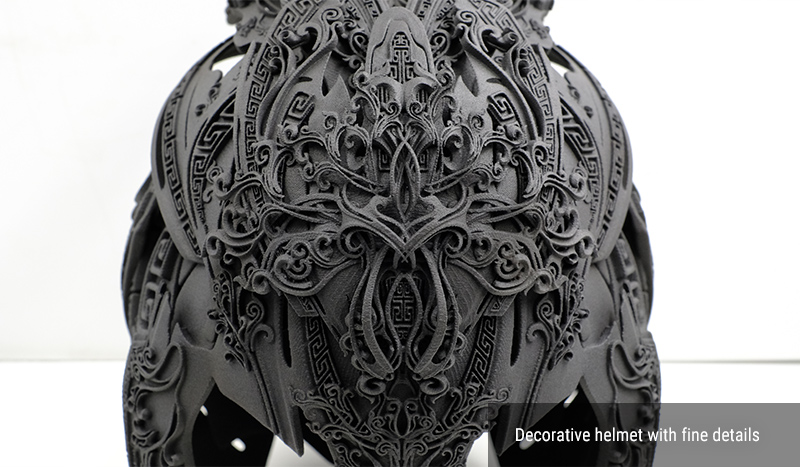

FS3201PA-F

Developed for Flight® Technology, Farsoon’s FS3201PA-F is a PA12 based polymer material features good toughness, durability and size stability. It also showcasing higher ductility, making it a perfect choice for quality, functional parts require enhanced performance.

General Properties

Part Density1.04 g/cm³
Color Black

Thermal Properties

Melting Point (10°C/min)185.5 °C
Heat Deflection Temp (HDT) @1.8 MPa 62 °C
Heat Deflection Temp (HDT) @0.45 MPa 147 °C

Key Mechanical Properties

Tensile Strength44 MPa
Tensile Modulus 1500 MPa
Elongation at Break35%
DOWNLOAD TECHNICAL DATA

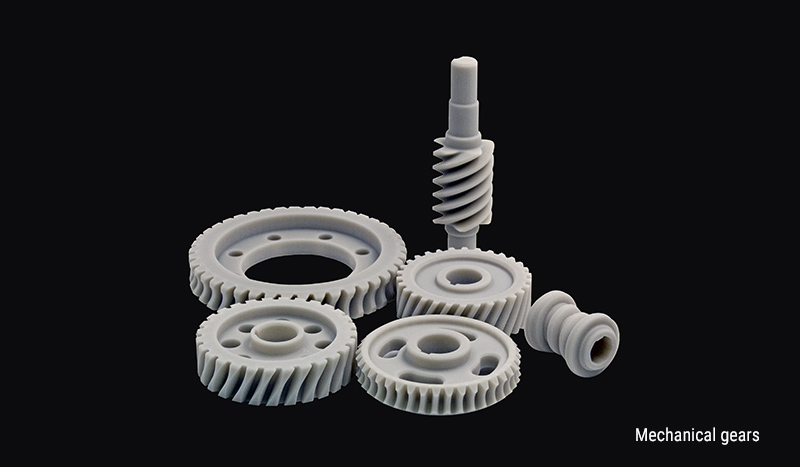

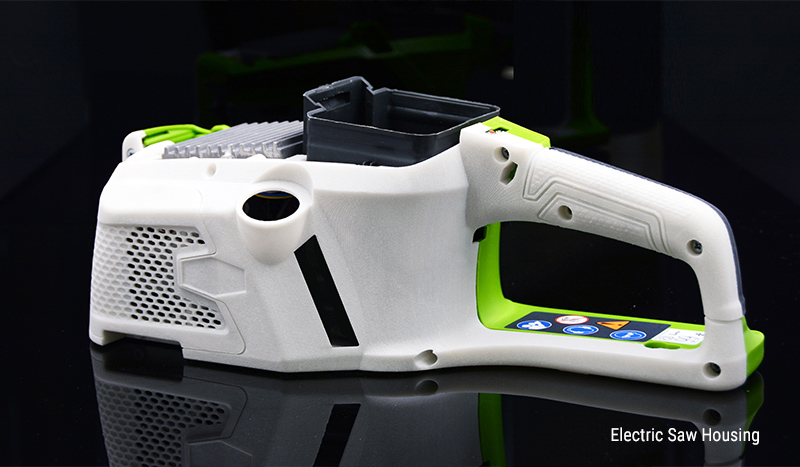

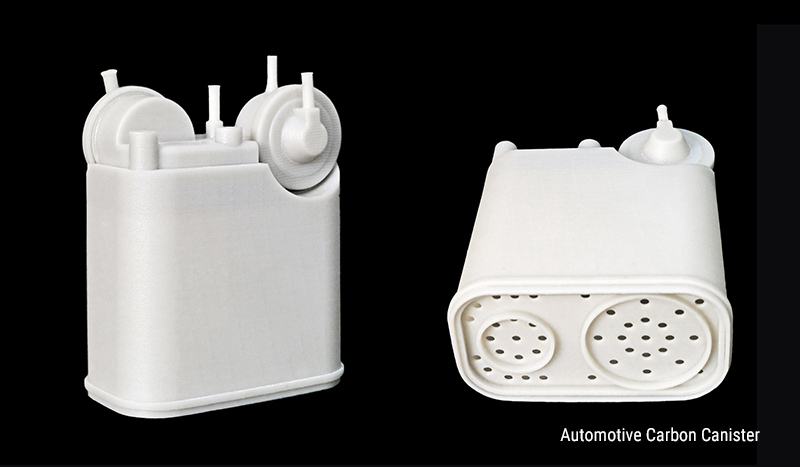

FS3401GB

Farsoon’s FS3401GB is a PA12-based, advanced Glass Bead Filled Material offering high mechanical properties for industrial applications. Featuring outstanding resistance to thermal deformation and good size-stability, it is a perfect choice for functional parts production requiring high mechanical strength and rigidity.

General Properties

Part Density 1.26 g/cm³
ColorGrey

Thermal Properties

Melting Point (10°C/min)184 °C
Heat Deflection Temp (HDT) @1.8 MPa68.8 °C
Heat Deflection Temp (HDT) @0.45 MPa152.4 °C

Key Mechanical Properties

Tensile Strength44 MPa
Tensile Modulus2644 MPa
Elongation at Break9.3%
DOWNLOAD TECHNICAL DATA

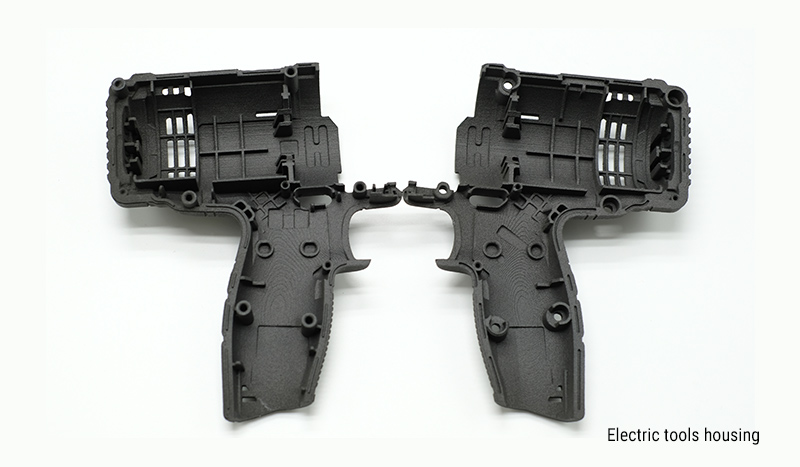

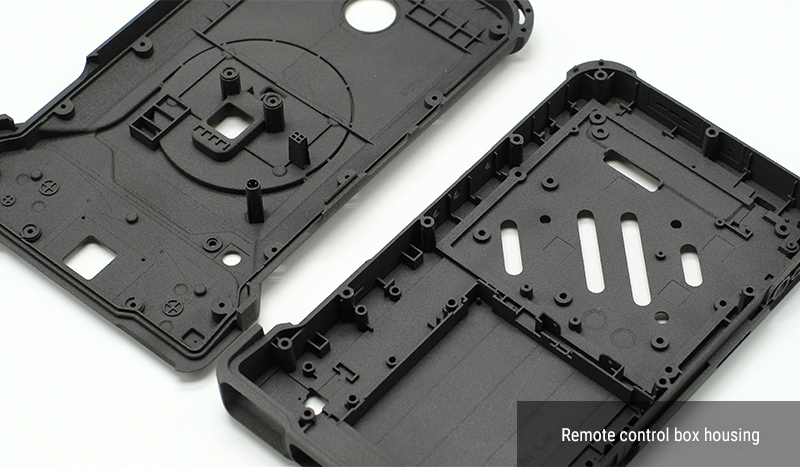

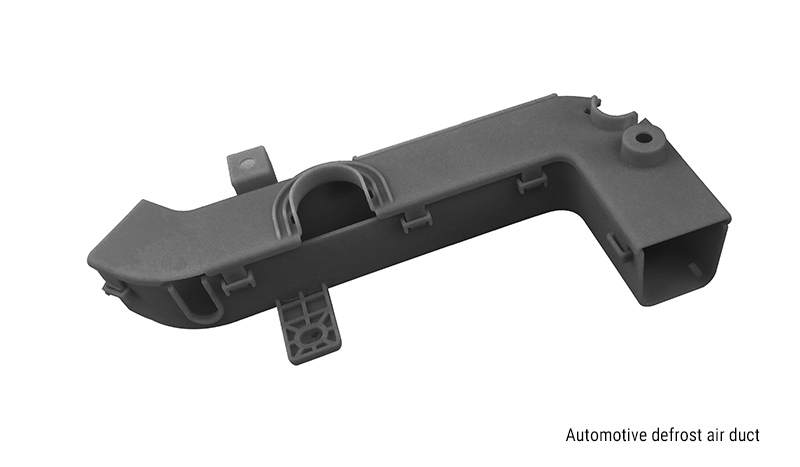

FS3401GB-F

Developed for Flight® Technology, the PA12 based FS3401GB-F is optimized for Fiber Laser processing. The glass bead reinforced PA12 material FS3401GB-F is an ideal material for end-use applications that require functionality with excellent mechanical strength. Components made from this material are characterized with extraordinary dimensional stability, good thermal and abrasive resistance; making them well suited for industrial applications such as automotive engine system and electrical tools.

General Properties

Part Density1.30 g/cm³
ColorBlack

Thermal Properties

Melting Point (10°C/min)185.5 °C
Heat Deflection Temp (HDT) @1.8 MPa62 °C
Heat Deflection Temp (HDT) @0.45 MPa157 °C

Key Mechanical Properties

Tensile Strength47 MPa
Tensile Modulus2810 MPa
Elongation at Break8.7%
DOWNLOAD TECHNICAL DATA

FS3250MF

Farsoon’s reinforced Mineral Fiber Filled PA12 Material is designated to suit a wide range of advanced technical applications. Building on the chemical base of reinforced PA12, FS3250MF boasts extremely high rigidity, enhanced thermal performance and low contractive rate.

General Properties

Part Density1.20 g/cm3
ColorLight grey

Thermal Properties

Melting Point (10°C/min)183 °C
Heat Deflection Temp (HDT) @1.8 MP129 °C
Heat Deflection Temp (HDT) @0.45 MPa171 °C

Key Mechanical Properties

Tensile Strength51 MPa
Tensile Modulus6130 MPa
Elongation at Break5%
DOWNLOAD TECHNICAL DATA
