FS621M

Extensive build envelope of 620 x 620 x 1700 mm

High throughput with up to hexa 500-Watt lasers

Modular design concept offers ease of operation

Introducing FS621M

Addressing the metal manufacturing challenges including productivity, size constraints, powder management, process control and factory layout, Farsoon developed the all-new FS621M by co-innovating with our key industry partner in the aerospace industry, with focuses on extended build cylinder volume and maximum productivity per laser.

Extra-Large Build Volume

Productivity + Quality

Operational Ease

Extra-Large Build Volume

Developed with a focus on large build size, Farsoon’s FS621M features one of the largest metal laser sintering build volumes in the additive market, with a build platform size of 620×620mm and vertical axis of 1.7 meter. This expansive build envelope opens new possibilities for large-scale metal production that couldn’t be built before in industries such as aerospace, oil and gas, and many others.

Productivity + Quality

The FS621M can be equipped with a powerful single 1000W laser or quad 500W lasers or hexa 500W lasers, allowing for great rates of production. In addition, the FS621M like all Farsoon systems is a truly open platform which offers the user a high degree of control to tailor build parameters for cost-competitive metal additive manufacturing. An advanced dynamic 3-axis scanning system, powerful build process controls & real-time recoating monitoring ensuring the best build quality.

Operational Ease

The FS621M's integrated filter module features secondary circulating system and a dual-station filter design that allows for the exchanging of filters without disturbing the build process. The FS621M powder handling processes share a common powder container design which are used during loading, unloading and sieving procedures. These containers offer fully-sealed powder handling, easy transportations between the stations, and safe storage of powder. This partially closed powder system allows for the capability of continuous feeding of powder to the build while retaining the ability to easily exchange and monitor powder quality.

DOWNLOAD BROCHURE

Industrial Applications with FS621M

The large-frame FS621M metal system offers unparalleled production edge for large-scale applications that favors higher Z axis. Taking the feedback from the broad industrial user base from aerospace, oil & gas, and energy sectors , the FS621M system is fully optimized for batch production capabilities with materials such as titanium alloys, aluminum alloys, nickel-based superalloys, stainless steels and maraging steels.

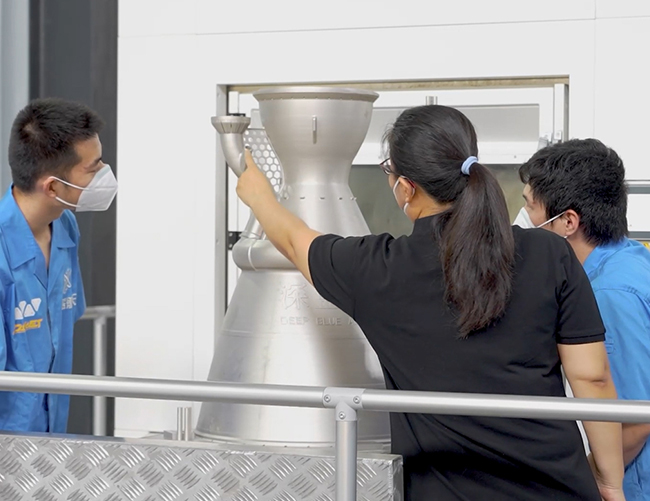

Deep Blue Aerospace Combustion Chamber

Machine: FS621M
Material: IN718
Size: 550 x 550 x 780 (H) mm

The additive manufactured Inconel combustion chamber measures 780mm (30.7 inches) in height and 550mm (21.7 inches) in diameter. Major challenges include the size of the build, function integration, and detail resolution. The advanced additive manufacturing enabled many new innovations from Deep Blue engineers including consolidated design, light-weight lattice structures, and complex geometries.

View Success Story

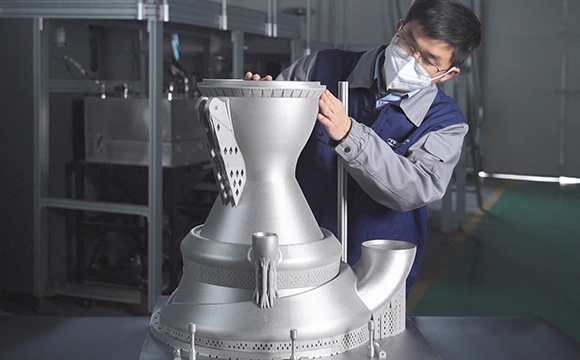

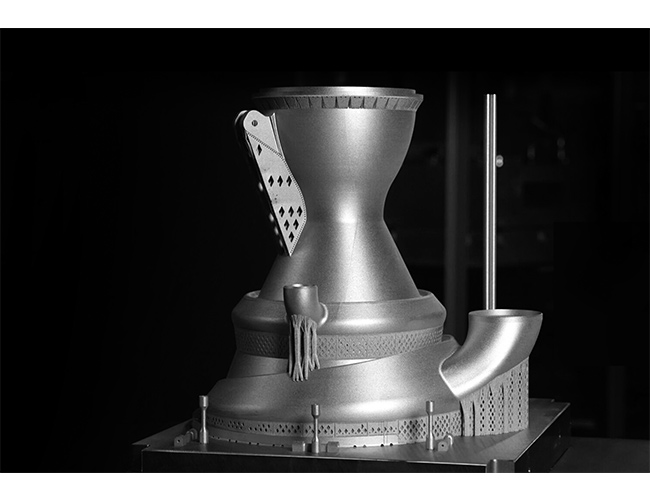

Combustion Chamber of Rocket Engine

Machine: FS621M-4
Material: IN718
Size: 600 x 496 x 558 (H) mm
Layer thickness: 0.04 mm
Build Time: 258 Hours

Farsoon Technologies in collaboration with aerospace industry partner to produce this single piece combustion chamber with Inconel superalloy 718 for functional validation. The additively manufactured part showcased structural integration, improved design features, accelerated development cycle, and of course a significantly reduced cost.

VIEW AEROSPACE INDUSTRY

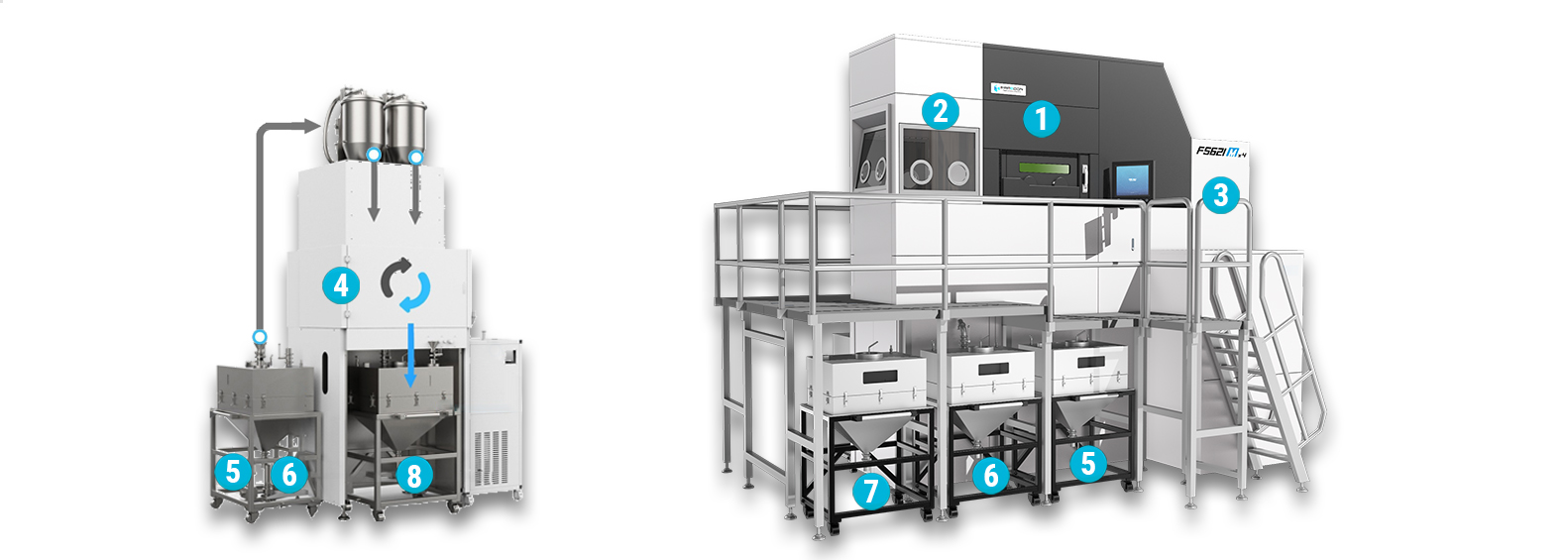

Discover FS621M System

1-Build Station

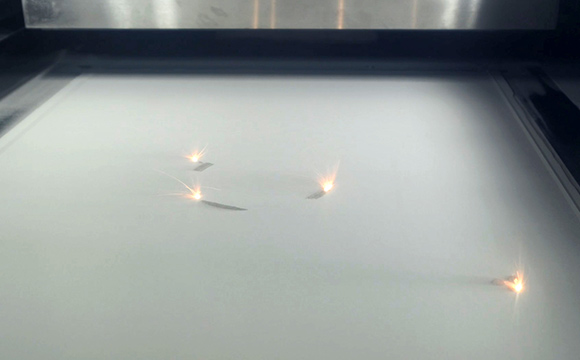

The build Station module is where the sintering process takes place. Once the build cartridge is in place, the build packet files would be loaded into Farsoon’s BuildStar^TM operating software, then the build process begins. The build chamber is featured with front and rear access door for ease of operation.
2-Breakout Station

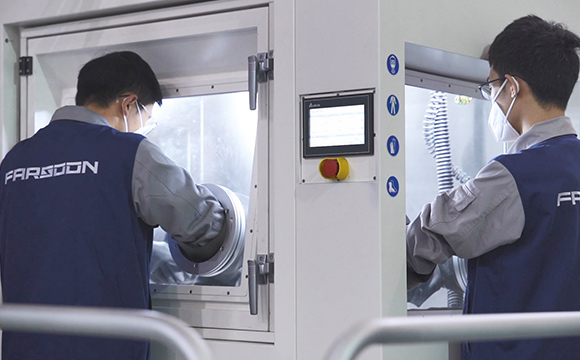

The build cartridge is moved to breakout station via the internal conveyor system. The Breakout Station is fully enclosed and is accessed through glove boxes on 3 sides of the station allows the capability of multiple operators while retaining a clean working environment. The convenient air-gun and vacuum hose access allow for gentle powder removal and detailed cleaning.
3-Filtration System
The FS621M's integrated filter module features secondary circulating system and a dual-station filter design that allows for the exchanging of filters without disturbing the build process.
4-Sieving Station
The powder sieving station features a vibration screen offering efficient sieving of recycled metal powder from the overflow & recycled powder hoppers to filter the large particles.
5-Overflow Powder Hopper
Located under the Build Station of FS621M, the modular Overflow Powder Hopper collects the excessed powder from the build chamber to be processed at Sieving Station.
6-Recycled Powder Hopper
Conveniently located under the FS621M’s integrated Breakout Station, the modular Recycled Powder Hopper collects the excessed used metal powder from the part cake to be processed at Sieving Station.
7-Powder Supply Hopper
The modular, fully-sealed Powder Supply Hopper offers efficient powder supply under invert gas protection; It features a common design with the Refreshed Powder Hopper for ease of transportation and material quality control.
8-Refreshed Powder Hopper
After the sieving process, the metal powder is collected and stored in the refreshed powder hopper. It can be reused for powder supply or further processing or monitoring according to the application needs.

FS621M Technical Data

Technical Data	FS621M
External Dimensions （L×W×H）	5890×4350×3940mm (231.9×171.3×155.1 in)
Build Cylinder Size¹（L×W×H）	620×620×1100mm ( 24.4 × 24.4 × 43.3 in ) (Height incl. build plate)
Net Weight	Approx. 8000 kg ( 17637.0 lb )
Laser Type	Single Laser, 1×1000W
Scanner	F theta lenses
Scanning Speed	Max. 10 m/s ( 32.8 ft/s )

Technical Data	FS621M-4
External Dimensions （L×W×H）	5890×4350×3940mm (231.9×171.3×155.1 in)
Build Cylinder Size¹（L×W×H）	620×620×1100mm ( 24.4 × 24.4 × 43.3 in ) (Height incl. build plate)
Net Weight	Approx. 8000 kg ( 17637.0 lb )
Laser Type	Quad Lasers, 4×500W
Scanner	F theta lenses
Scanning Speed	Max. 10 m/s ( 32.8 ft/s )

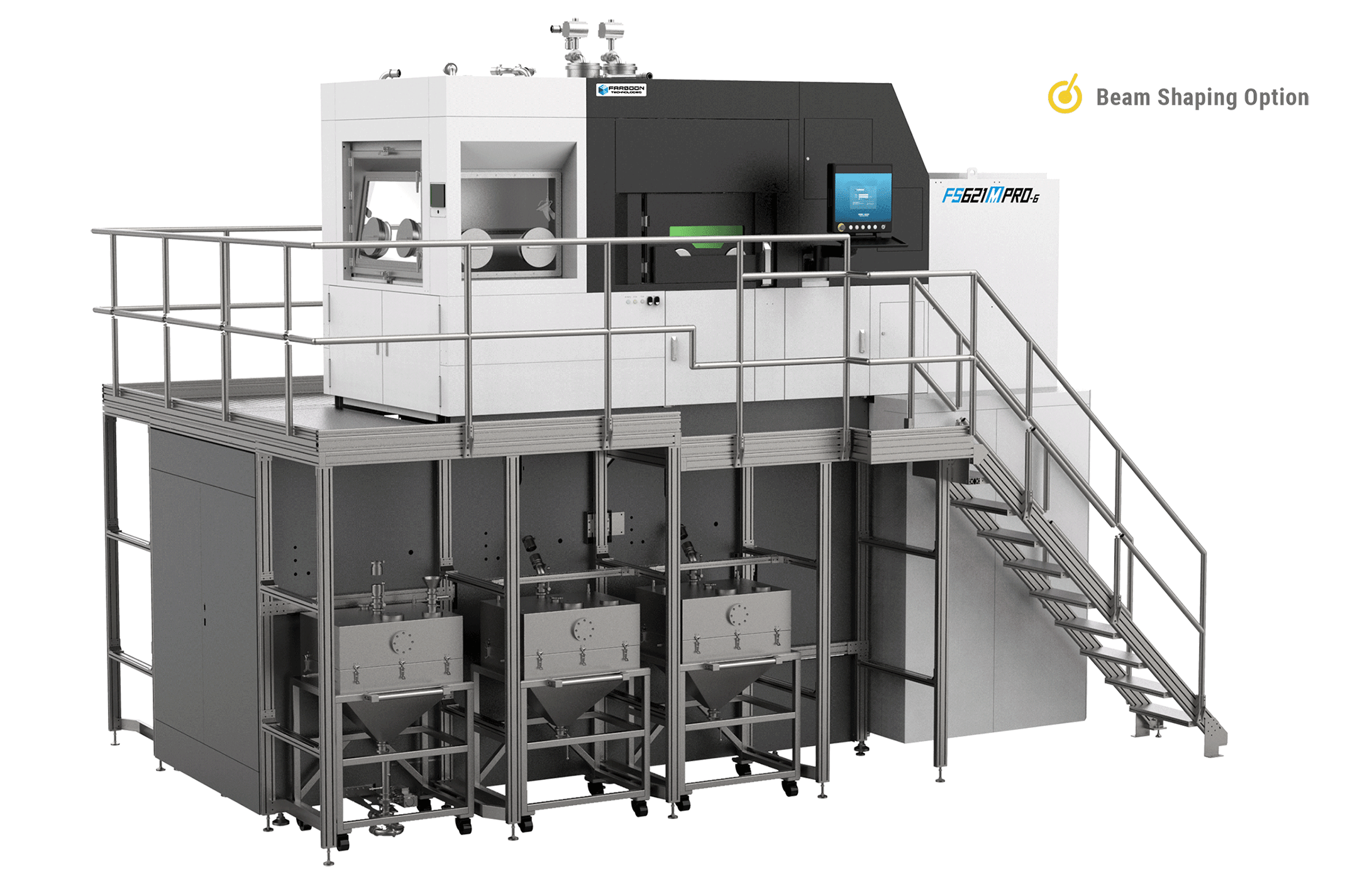

Technical Data	FS621M Pro-6
External Dimensions （L×W×H）	6300×4050×4330mm (248.0×159.9×170.5 in)
Build Cylinder Size¹（L×W×H）	620×808×1200mm ( 24.4 × 31.8 × 47.2 in ) (Height incl. build plate)
Net Weight	Approx. 13000 kg ( 28660.1 lb )
Laser Type	Hexa Lasers, 6×500W
Scanner	F theta lenses or dynamic focusing system
Scanning Speed	Max. 10 m/s ( 32.8 ft/s )

Technical Data	FS621M-U-4
External Dimensions （L×W×H）	6200×5225×5510mm (244.1×205.7×216.9 in)
Build Cylinder Size¹（L×W×H）	620×620×1700mm ( 24.4 × 24.4 × 66.9 in ) (Height incl. build plate)
Net Weight	Approx. 15000 kg ( 33069.3 lb )
Laser Type	Quad Lasers, 4×500W
Scanner	F theta lenses or dynamic focusing system
Scanning Speed	Max. 10 m/s ( 32.8 ft/s )

1 The functional build volume depends on the parts/materials
