FS811M

Large-format Metal Laser Sintering System
boasts high productivity

REQUEST OFFER

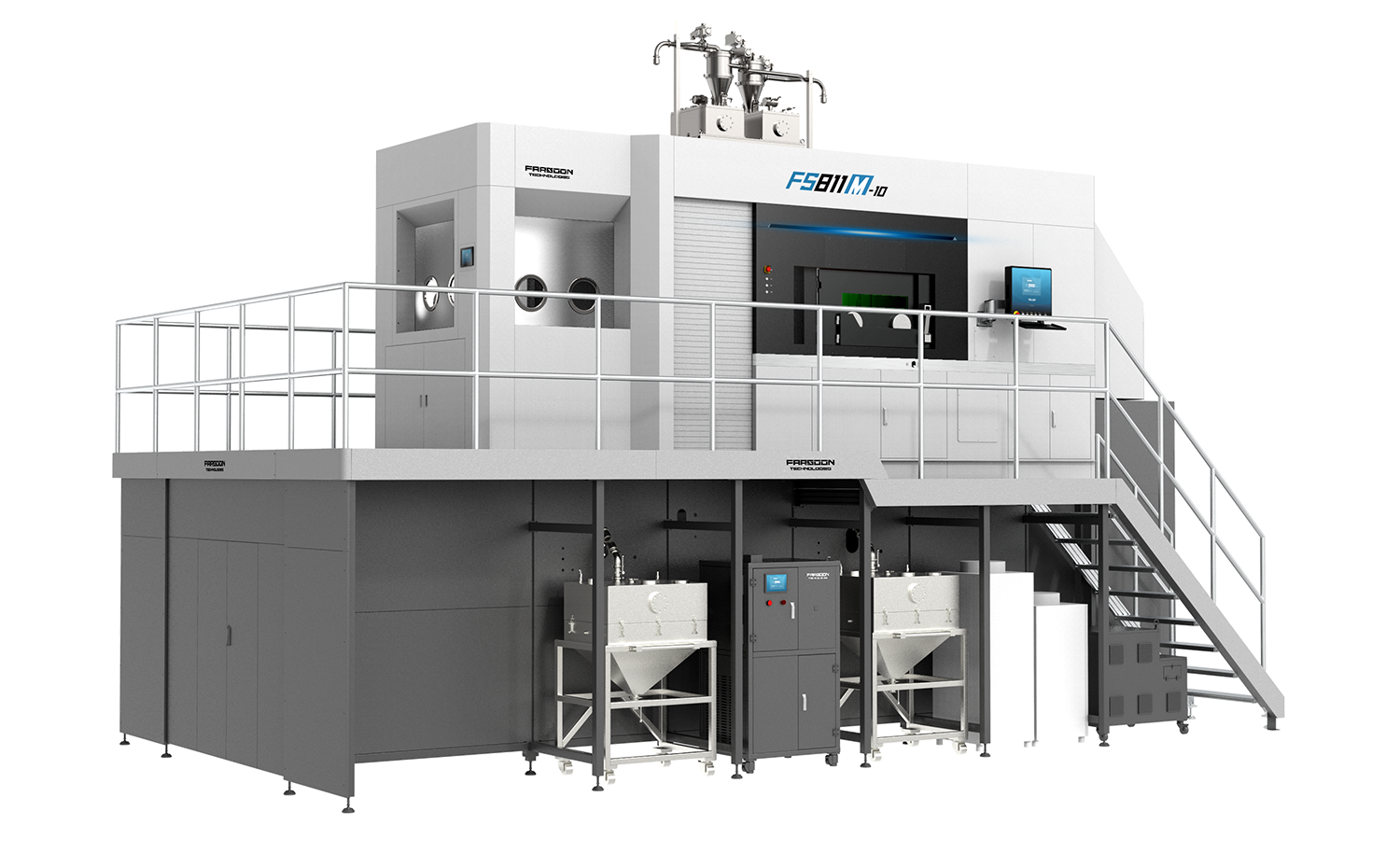

Introducing FS811M

In response to escalating demands for enhanced manufacturing efficacy, dependability, and expanded build capacities across aerospace, oil & gas, energy, and automotive sectors, we engineered the FS811M. This advanced system is meticulously optimized for high-volume production of bespoke applications, delivering superior quality outputs and facilitating seamless operational workflows.

FS811M

True Production Tool

Quality + Reliability

Operational Ease

True Production Tool

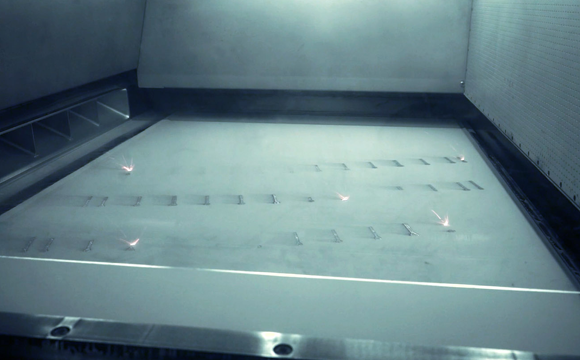

The FS811M offers an expansive build volume of 677 Liters, among the largest in the metal laser powder bed fusion market, with dimensions of 840 × 840mm for the XY build platform and 960mm for the vertical axis. Its impressive Z height opens new avenues for large-scale industrial applications, especially in aerospace, aviation, and oil & gas. Equipped with up to 12 robust fiber lasers and a high-speed galvo system, it achieves a production yield of up to 300cm3/h.

Quality + Reliability

The FS811M platform features many innovative designs bringing your manufacturing dreams into quality parts. The all-new multi-layer gas flow with advanced wind-wall design ensuring real-time particle removal throughout the whole oversized chamber. The excellent air tightness design of FS811M build chamber enables extreme oxygen content, and low inert gas consumption during the build process, ensuring the part quality consistency while reduce operational costs. The powerful permanent filtration system allows uninterrupted, reliable process for extreme build times.

Operational Ease

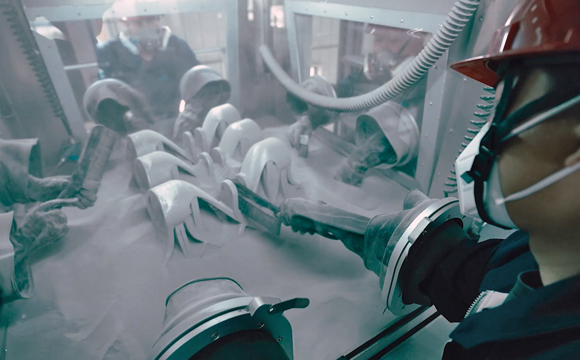

The FS811M build chamber is equipped with both front and rear doors for ease of operation and maintenance. Once the build is completed, the part cylinder can be transferred to powder breakout station and part extract station via an integrated conveyor system. The breakout station is fully enclosed and can be accessed through glove boxes on all 4 sides, allowing multiple operators for powder removal and detail cleaning under safe inert atmosphere.

DOWNLOAD BROCHURE

Industrial Applications with FS811M

The FS811M metal system, with its large frame, provides a significant production advantage for large-scale applications, prioritizing both an expanded XY footprint and a higher Z axis. Developed based on extensive feedback from industrial users in aerospace, oil & gas, and energy sectors, the FS811M is fully optimized for batch production. It excels in working with materials like titanium alloys, high-temperature nickel-based superalloys, and others.

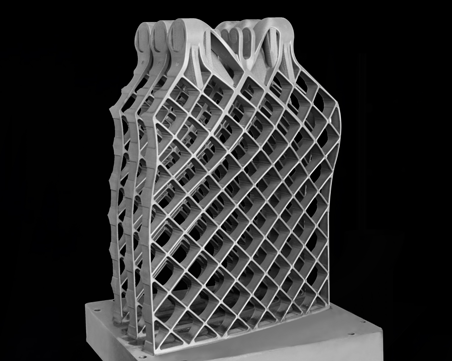

Stabilizer Fin of Rocket

Machine: FS811M-U-6
Material: TA15
Size: 750 x 195 x 1035 (H) mm

Meticulously crafted with precision using our cutting-edge FS811M metal 3D printing technology verses traditional manufacturing methods, the production of the stabilizer fin showcases numerous benefits, including simplified processes, superior quality, and the freedom to create innovative designs that were once deemed impossible. Intricate geometries can be produced with unmatched precision, resulting in parts that are lighter, stronger, and more efficient than ever before.

VIEW AEROSPACE INDUSTRY

Discover FS811M System

FS811M Technical Data

Technical DataFS811M
External Dimensions （L×W×H）8500×4500×4970 mm (334.7×177.2×195.7 in)
Build Cylinder Size1（L×W×H）840×840×960mm (33.1×33.1×37.8 in ) (Height incl. build plate)
Net WeightApprox. 25000 KG ( 55115.6 lb )
Laser TypeFiber Laser, 6×500W or 8×500W or 10×500W or 12×500W
ScannerF theta lenses
Scanning SpeedMax. 10 m/s (32.8 ft/s)
